Compatible Car Batteries for MAZDA 323 I (1) (FA)
Model years: 01.1977 - 11.1982. Car body type: Hatchback
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| MAZDA 323 I (1) (FA) 1.0 | 06.1977 - 05.1980 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.13” x 6.89” x 8.66” 232 x 175 x 220 mm |
7.36” x 5” x 7.87” 187 x 127 x 200 mm |
| MAZDA 323 I (1) (FA) 1.3 | 01.1977 - 05.1980 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.13” x 6.89” x 8.66” 230 x 173 x 222 mm |
7.36” x 5” x 7.87” 230 x 172 x 200 mm |
| MAZDA 323 I (1) (FA) 1.4 | 05.1978 - 05.1980 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.13” x 6.89” x 8.66” 230 x 173 x 222 mm |
7.36” x 5” x 7.87” 187 x 127 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| MAZDA 323 I (1) (FA) 1.0 | 06.1977 - 05.1980 | 600 | 480 | 300 |
| MAZDA 323 I (1) (FA) 1.3 | 01.1977 - 05.1980 | 600 | 480 | 390 |
| MAZDA 323 I (1) (FA) 1.4 | 05.1978 - 05.1980 | 600 | 480 | 300 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| MAZDA 323 I (1) (FA) 1.0 | 06.1977 - 05.1980 | 65 | 60 | 35 |
| MAZDA 323 I (1) (FA) 1.3 | 01.1977 - 05.1980 | 65 | 60 | 60 |
| MAZDA 323 I (1) (FA) 1.4 | 05.1978 - 05.1980 | 65 | 60 | 35 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
|
Battery Brand: BOSCH Battery Code: 0 092 S40 240 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 232 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |
 |
|

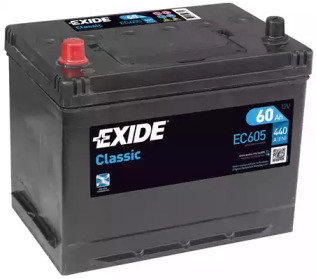

Battery Brand: EXIDE Battery Code: EC605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 440 A Length: 270 Width: 173 Height: 222 Post Positions: 1 Terminal Type: 1 Hold-down Type: B9 |
 |
|
Battery Brand: NPS Battery Code: U540L03B Length: 187 Width: 127 Height: 200 Voltage: 12 V Battery Capacity: 35 AH Cold Cranking Amps (CCA) DIN: 180 A Cold Cranking Amps (CCA): 300 A |
 |
|
Battery Brand: COMLINE Battery Code: CB005PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 450 A Battery Capacity: 60 AH Post Positions: 0 Filled Weight: 14.8 kg Length: 230 Width: 170 Height: 220 |
 |
|
Battery Brand: EXIDE Battery Code: EB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |
 |
