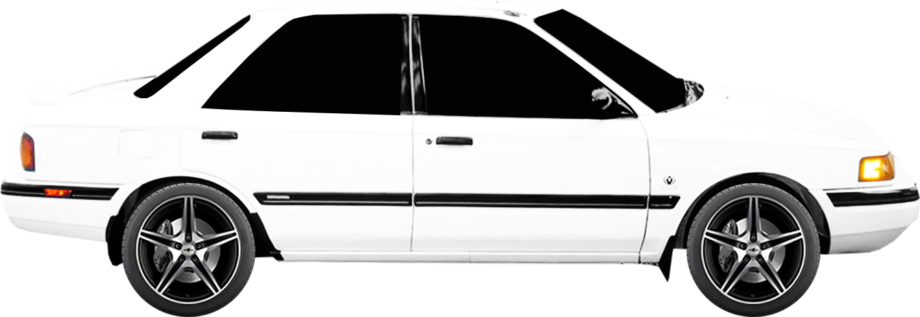

Battery for MAZDA 323 S IV (Generation 4) (BG)

Compatible Car Batteries for MAZDA 323 S IV (4) (BG)

Model years: 06.1989 - 10.1994. Car body type: Sedan

Battery Size Requirements

Car Model DescriptionModel YearsMax SizeAVG SizeMin Size
MAZDA 323 S IV (4) (BG) 1.3 09.1989 - 06.1991 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 170 x 224 mm
7.87” x 6.77” x 7.87”
200 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.3 16V 04.1991 - 07.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 170 x 224 mm
7.87” x 6.77” x 7.87”
200 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.6 09.1989 - 06.1991 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
200 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.6 16V 08.1989 - 10.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
200 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.8 16V 08.1989 - 07.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
230 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.7 D 08.1989 - 07.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
230 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.8 16V Turbo 4WD 01.1991 - 07.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
230 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.8 16V GT 06.1989 - 07.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
230 x 172 x 200 mm
MAZDA 323 S IV (4) (BG) 1.6 04.1991 - 10.1994 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.69” x 8.82”
230 x 173 x 222 mm
7.87” x 6.77” x 7.87”
200 x 172 x 200 mm

Battery CCA Requirements

Car Model DescriptionModel YearsMax CCAAVG CCAMin CCA
MAZDA 323 S IV (4) (BG) 1.3 09.1989 - 06.1991 600 480 360
MAZDA 323 S IV (4) (BG) 1.3 16V 04.1991 - 07.1994 600 480 360
MAZDA 323 S IV (4) (BG) 1.6 09.1989 - 06.1991 600 510 390
MAZDA 323 S IV (4) (BG) 1.6 16V 08.1989 - 10.1994 600 510 390
MAZDA 323 S IV (4) (BG) 1.8 16V 08.1989 - 07.1994 600 510 390
MAZDA 323 S IV (4) (BG) 1.7 D 08.1989 - 07.1994 600 510 390
MAZDA 323 S IV (4) (BG) 1.8 16V Turbo 4WD 01.1991 - 07.1994 600 510 390
MAZDA 323 S IV (4) (BG) 1.8 16V GT 06.1989 - 07.1994 600 510 390
MAZDA 323 S IV (4) (BG) 1.6 04.1991 - 10.1994 600 510 390

Battery Capacity (AH) Requirements

Car Model DescriptionModel YearsMax AHAVG AHMin AH
MAZDA 323 S IV (4) (BG) 1.3 09.1989 - 06.1991 65 60 50
MAZDA 323 S IV (4) (BG) 1.3 16V 04.1991 - 07.1994 65 60 50
MAZDA 323 S IV (4) (BG) 1.6 09.1989 - 06.1991 65 60 50
MAZDA 323 S IV (4) (BG) 1.6 16V 08.1989 - 10.1994 65 60 50
MAZDA 323 S IV (4) (BG) 1.8 16V 08.1989 - 07.1994 65 60 60
MAZDA 323 S IV (4) (BG) 1.7 D 08.1989 - 07.1994 65 60 60
MAZDA 323 S IV (4) (BG) 1.8 16V Turbo 4WD 01.1991 - 07.1994 65 60 60
MAZDA 323 S IV (4) (BG) 1.8 16V GT 06.1989 - 07.1994 65 60 60
MAZDA 323 S IV (4) (BG) 1.6 04.1991 - 10.1994 65 60 50

Examples of Compatible Batteries

Battery Specs Battery Image

Battery Brand: BOSCH

Battery Code: 0 092 S40 240

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 540 A

Length: 232

Width: 173

Height: 225

Post Positions: 0

Hold-down Type: B00

Terminal Type: 1

Battery Brand: NPS

Battery Code: U540L45B

Length: 230

Width: 172

Height: 200

Voltage: 12 V

Cold Cranking Amps (CCA): 480 A

Battery Capacity: 60 AH

Cold Cranking Amps (CCA) DIN: 250 A

Battery Brand: EXIDE

Battery Code: EB504

Voltage: 12 V

Battery Capacity: 50 AH

Cold Cranking Amps (CCA): 360 A

Length: 200

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: Korean B1

Battery Brand: EXIDE

Battery Code: EA654

Voltage: 12 V

Battery Capacity: 65 AH

Cold Cranking Amps (CCA): 580 A

Length: 230

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: Korean B1

Battery Brand: COMLINE

Battery Code: CB005PL

Hold-down Type: B0

Voltage: 12 V

Cold Cranking Amps (CCA): 450 A

Battery Capacity: 60 AH

Post Positions: 0

Filled Weight: 14.8 kg

Length: 230

Width: 170

Height: 220

Battery Brand: NPS

Battery Code: U540L17B

Length: 200

Width: 172

Height: 200

Voltage: 12 V

Battery Capacity: 50 AH

Cold Cranking Amps (CCA) DIN: 230 A

Cold Cranking Amps (CCA): 390 A

Battery Brand: DETA

Battery Code: DA654

Voltage: 12 V

Battery Capacity: 65 AH

Height: 222

Width: 173

Length: 230

Cold Cranking Amps (CCA): 580 A

Post Positions: 0

Terminal Type: EN

Hold-down Type: Korean B1

Battery Brand: PLATINUM

Battery Code: 005LE

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 510 A

Cold Cranking Amps (CCA) DIN: 56068 A

Length: 230

Width: 172

Height: 223

Post Positions: 0

Terminal Type: T1

Hold-down Type: N

Battery Brand: DETA

Battery Code: DB604

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 390 A

Length: 230

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: B0

Battery Brand: TUDOR

Battery Code: TB604

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 390 A

Length: 230

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: B0
