Battery for MAZDA 6 Station Wagon (GH)

Compatible Car Batteries for MAZDA 6 Station Wagon (GH)

Model years: 12.2007 - 07.2013. Car body type: Station Wagon

Battery Size Requirements

Car Model DescriptionModel YearsMax SizeAVG SizeMin Size
MAZDA 6 Station Wagon (GH) 2.0 MZR 01.2010 - 07.2013 9.13” x 6.89” x 8.86”
232 x 175 x 225 mm
9.06” x 6.81” x 8.74”
230 x 173 x 222 mm
9.06” x 6.77” x 7.87”
230 x 172 x 200 mm
MAZDA 6 Station Wagon (GH) 2.2 D 01.2010 - 07.2013 9.13” x 6.89” x 8.86”
303 x 175 x 227 mm
9.06” x 6.81” x 8.74”
315 x 175 x 205 mm
9.06” x 6.77” x 7.87”
242 x 174 x 190 mm
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 01.2010 - 07.2013 9.13” x 6.89” x 8.86”
303 x 175 x 227 mm
9.06” x 6.81” x 8.74”
315 x 175 x 205 mm
9.06” x 6.77” x 7.87”
242 x 174 x 190 mm
MAZDA 6 Station Wagon (GH) 1.8 MZR 02.2008 - 07.2013 9.13” x 6.89” x 8.86”
271 x 175 x 220 mm
9.06” x 6.81” x 8.74”
230 x 173 x 222 mm
9.06” x 6.77” x 7.87”
242 x 175 x 175 mm
MAZDA 6 Station Wagon (GH) 2.0 MZR 12.2007 - 07.2013 9.13” x 6.89” x 8.86”
271 x 175 x 220 mm
9.06” x 6.81” x 8.74”
230 x 173 x 222 mm
9.06” x 6.77” x 7.87”
242 x 175 x 175 mm
MAZDA 6 Station Wagon (GH) 2.0 MZR-CD 12.2007 - 12.2010 9.13” x 6.89” x 8.86”
306 x 173 x 225 mm
9.06” x 6.81” x 8.74”
270 x 173 x 222 mm
9.06” x 6.77” x 7.87”
241 x 175 x 190 mm
MAZDA 6 Station Wagon (GH) 2.5 MZR 02.2008 - 07.2013 9.13” x 6.89” x 8.86”
271 x 175 x 220 mm
9.06” x 6.81” x 8.74”
242 x 175 x 190 mm
9.06” x 6.77” x 7.87”
242 x 175 x 175 mm
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 01.2009 - 12.2010 9.13” x 6.89” x 8.86”
271 x 175 x 220 mm
9.06” x 6.81” x 8.74”
261 x 175 x 220 mm
9.06” x 6.77” x 7.87”
242 x 174 x 190 mm
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 08.2008 - 07.2013 9.13” x 6.89” x 8.86”
304 x 174 x 225 mm
9.06” x 6.81” x 8.74”
261 x 175 x 220 mm
9.06” x 6.77” x 7.87”
242 x 174 x 190 mm
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 08.2008 - 12.2011 9.13” x 6.89” x 8.86”
304 x 174 x 225 mm
9.06” x 6.81” x 8.74”
269 x 173 x 218 mm
9.06” x 6.77” x 7.87”
242 x 174 x 190 mm

Battery CCA Requirements

Car Model DescriptionModel YearsMax CCAAVG CCAMin CCA
MAZDA 6 Station Wagon (GH) 2.0 MZR 01.2010 - 07.2013 680 540 390
MAZDA 6 Station Wagon (GH) 2.2 D 01.2010 - 07.2013 850 700 550
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 01.2010 - 07.2013 850 700 550
MAZDA 6 Station Wagon (GH) 1.8 MZR 02.2008 - 07.2013 680 540 390
MAZDA 6 Station Wagon (GH) 2.0 MZR 12.2007 - 07.2013 680 540 390
MAZDA 6 Station Wagon (GH) 2.0 MZR-CD 12.2007 - 12.2010 850 680 480
MAZDA 6 Station Wagon (GH) 2.5 MZR 02.2008 - 07.2013 700 560 390
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 01.2009 - 12.2010 700 560 540
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 08.2008 - 07.2013 740 570 540
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 08.2008 - 12.2011 780 570 540

Battery Capacity (AH) Requirements

Car Model DescriptionModel YearsMax AHAVG AHMin AH
MAZDA 6 Station Wagon (GH) 2.0 MZR 01.2010 - 07.2013 65 60 50
MAZDA 6 Station Wagon (GH) 2.2 D 01.2010 - 07.2013 105 95 60
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 01.2010 - 07.2013 105 90 60
MAZDA 6 Station Wagon (GH) 1.8 MZR 02.2008 - 07.2013 70 60 50
MAZDA 6 Station Wagon (GH) 2.0 MZR 12.2007 - 07.2013 70 60 50
MAZDA 6 Station Wagon (GH) 2.0 MZR-CD 12.2007 - 12.2010 105 90 55
MAZDA 6 Station Wagon (GH) 2.5 MZR 02.2008 - 07.2013 70 60 55
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 01.2009 - 12.2010 80 70 60
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 08.2008 - 07.2013 90 70 60
MAZDA 6 Station Wagon (GH) 2.2 MZR-CD 08.2008 - 12.2011 90 70 60

Examples of Compatible Batteries

Battery Specs Battery Image

Battery Brand: VARTA

Battery Code: 560901068D852

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 680 A

Post Positions: 0

Terminal Type: 1

Hold-down Type: B13

Length: 242

Width: 175

Height: 190

Battery Brand: VARTA

Battery Code: 5604100543132

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 540 A

Post Positions: 0

Terminal Type: 1

Hold-down Type: B00

Length: 232

Width: 173

Height: 225

Battery Brand: TUDOR

Battery Code: TB604

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 390 A

Length: 230

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: B0

Battery Brand: BOSCH

Battery Code: 0 092 S40 280

Voltage: 12 V

Battery Capacity: 95 AH

Cold Cranking Amps (CCA): 830 A

Length: 306

Width: 173

Height: 225

Post Positions: 0

Hold-down Type: B01

Terminal Type: 1

Battery Brand: VMF

Battery Code: 57029

Voltage: 12 V

Battery Capacity: 70 AH

Height: 220

Width: 175

Length: 261

Cold Cranking Amps (CCA): 550 A

Post Positions: 0

Hold-down Type: B01

Terminal Type: 1

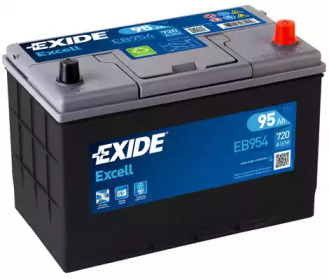

Battery Brand: EXIDE

Battery Code: EB954

Voltage: 12 V

Battery Capacity: 95 AH

Cold Cranking Amps (CCA): 720 A

Length: 306

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: Korean B1

Battery Brand: VARTA

Battery Code: 5704120633132

Voltage: 12 V

Battery Capacity: 70 AH

Cold Cranking Amps (CCA): 630 A

Post Positions: 0

Terminal Type: 1

Hold-down Type: B01

Length: 261

Width: 175

Height: 220

Battery Brand: DETA

Battery Code: DB604

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 390 A

Length: 230

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: B0

Battery Brand: VARTA

Battery Code: 5954040833132

Voltage: 12 V

Battery Capacity: 95 AH

Cold Cranking Amps (CCA): 830 A

Post Positions: 0

Terminal Type: 1

Hold-down Type: B01

Length: 306

Width: 173

Height: 225

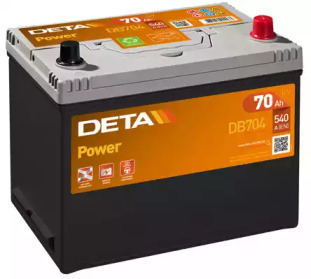

Battery Brand: DETA

Battery Code: DB704

Voltage: 12 V

Battery Capacity: 70 AH

Cold Cranking Amps (CCA): 540 A

Length: 270

Width: 173

Height: 222

Post Positions: 0

Terminal Type: EN

Hold-down Type: B9

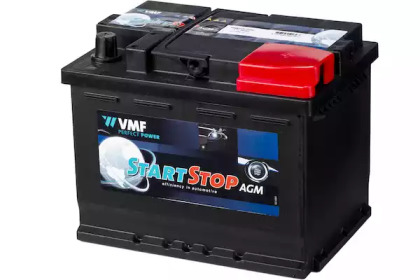

Battery Brand: VMF

Battery Code: AGM560680

Voltage: 12 V

Battery Capacity: 60 AH

Height: 190

Width: 174

Length: 242

Cold Cranking Amps (CCA): 680 A

Post Positions: 0

Hold-down Type: B13

Terminal Type: 1

Battery Brand: VARTA

Battery Code: 560500056D842

Voltage: 12 V

Battery Capacity: 60 AH

Cold Cranking Amps (CCA): 560 A

Post Positions: 0

Terminal Type: 1

Hold-down Type: B13

Length: 242

Width: 175

Height: 190

Battery Brand: COMLINE

Battery Code: CB030PL

Hold-down Type: B0

Voltage: 12 V

Cold Cranking Amps (CCA): 540 A

Battery Capacity: 70 AH

Post Positions: 0

Filled Weight: 15.6 kg

Length: 260

Width: 170

Height: 220

Battery Brand: PLATINUM

Battery Code: 249E

Voltage: 12 V

Battery Capacity: 90 AH

Cold Cranking Amps (CCA): 740 A

Cold Cranking Amps (CCA) DIN: 59004 A

Length: 304

Width: 174

Height: 225

Post Positions: 0

Terminal Type: T1

Hold-down Type: B01

Battery Brand: NPS

Battery Code: U540L26B

Length: 302

Width: 172

Height: 200

Voltage: 12 V

Battery Capacity: 80 AH

Cold Cranking Amps (CCA) DIN: 360 A

Cold Cranking Amps (CCA): 600 A
